Illustrate meshing of rectangular domain with voids

User specifies distribution of circular voids giving voids center and radius.

Contents

Set meshing parameters
Setup GMSH
Generate geometric model in GMSH geo format.
Generate mesh and extract node coordinates and element-nodes adjacency
Visualize mesh

clear variables;

Set meshing parameters

meshingParams.basename ='voids_2D';
meshingParams.folder = '.';
meshingParams.dim = 2;
meshingParams.clean = false;
meshingParams.quadsonly = false;
meshingParams.lc = 0.5;

Setup GMSH

This call is mandatory in order for Matlab/Octave to be able to run GMSH executable.

mp_setup_gmsh()

Generate geometric model in GMSH geo format.

params.lc = 0.5;

%  Define voids position and radius.
voids = [1,1, 0.2; 2,2, 0.3; 3,4, 0.5; 1, 4, 0.3];

params.xmargin = 1.0;
params.ymargin = 1.0;
params.quadsonly= true;
%
gmshgeom = mp_geom_voids2D(voids, params);

Generate mesh and extract node coordinates and element-nodes adjacency

[nodes, elements, regions] = mp_gmsh_generate(gmshgeom, meshingParams);

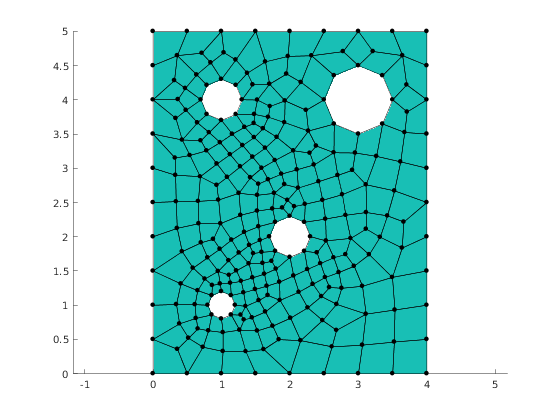

Visualize mesh

figure(1);
clf;
mp_plot_mesh(gca, nodes, elements);

axis('equal')
saveas(gcf(), 'voids2D.png');
% Report demo status
mp_manage_demos('report', 'voids2D', true);
