demo_mp_tagging

Illustrate tagging of region nodes
Generate geometric model in GMSH geo format.
Generate mesh and extract node coordinates and element-nodes adjacency
Visualize mesh
Node selector
Getting node tags
Plotting nodes

Illustrate tagging of region nodes

mesher = mp.Mesher();

Generate geometric model in GMSH geo format.

The model is parameterized by the following dimensions:

geom = mp.geoms.LShapeGeom('lshape');

Generate mesh and extract node coordinates and element-nodes adjacency

meshingParams.lc = 0.4;
mesh = mesher.generate(geom, meshingParams);

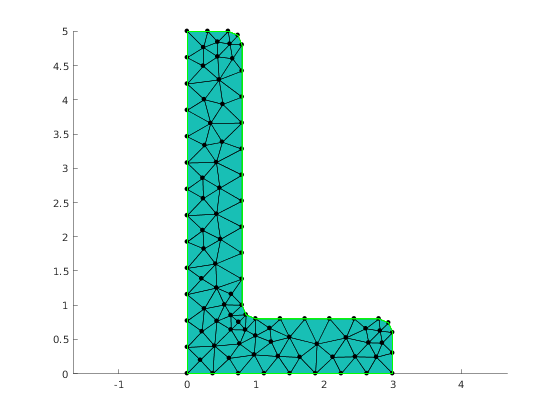

Visualize mesh

viewer = mp.Viewer();

viewer.show(mesh);

Node selector

Here we prepares data structure that manages which nodes are tagged and with what value. The names of the structure fields corresponds to the names of regions in the mesh. The values are the node tags.

selector.left=2;
selector.bottom=1

selector =

  struct with fields:

      left: 2
    bottom: 1

Getting node tags

Here we are using the default tagging method which means that the tag '1' has the highest priority (for the case a node belongs to two or more regions)

nodeTags = mp_tag_region_nodes(mesh,selector,'default',0);

Plotting nodes

ptid = find(nodeTags==1);
x = mesh.nodes(ptid, 1);
y = mesh.nodes(ptid, 2);
viewer.pointColor='yellow';
viewer.showPointsXY(x,y);


ptid = find(nodeTags==2);
x = mesh.nodes(ptid, 1);
y = mesh.nodes(ptid, 2);
viewer.pointColor='green';
viewer.showPointsXY(x,y);

Report demo status

mp_manage_demos('report', 'mp_tagging_nodes', true);
