Illustrate generation of mesh in L-shape domain

Contents

Setup GMSH
Set meshing parameters
Generate geometric model in GMSH geo format.
Generate mesh and extract node coordinates and element-nodes adjacency
Visualize mesh

Setup GMSH

This call is mandatory in order for Matlab/Octave to be able to run GMSH executable.

mp_setup_gmsh()

Set meshing parameters

meshingParams.basename ='rect';
meshingParams.folder = '.';
meshingParams.dim = 2;
meshingParams.clean = false;
% Do not echo any termian output from gmsh
meshing.showinfo = false;

Generate geometric model in GMSH geo format.

The model is parameterized by the following dimensions:

params.w = 3.0;
params.h = 5.0;
params.r = 0.2;
params.t = 0.8;
gmshgeom = mp_geom_lshape(params);

Generate mesh and extract node coordinates and element-nodes adjacency

Set the mesh density control

meshingParams.lc = 0.4

[nodes, elements] = mp_gmsh_generate(gmshgeom, meshingParams);

meshingParams =

  struct with fields:

    basename: 'rect'
      folder: '.'
         dim: 2
       clean: 0
          lc: 0.4000

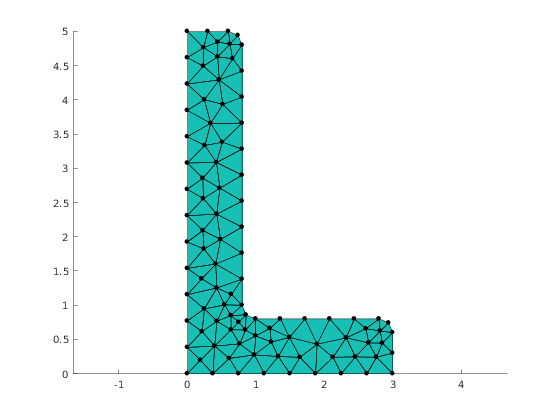

Visualize mesh

figure(1);
clf;
mp_plot_mesh(gca, nodes, elements);
axis('equal')
saveas(gcf(), 'lshape.png');
% Report demo status
mp_manage_demos('report', 'lshape_mesh', true);
