Illustrate numbering of edges in triangular elements.

In order to test various mesh utilities without resorting to GMSH, one can use MeshFactory class. The static method MeshFactory.poduce(name) generates Mesh object.

viewer = mp.Viewer();

mesh = mp.MeshFactory.produce('meshA');
viewer.show(mesh);
viewer.labelNodes()
viewer.labelElements();

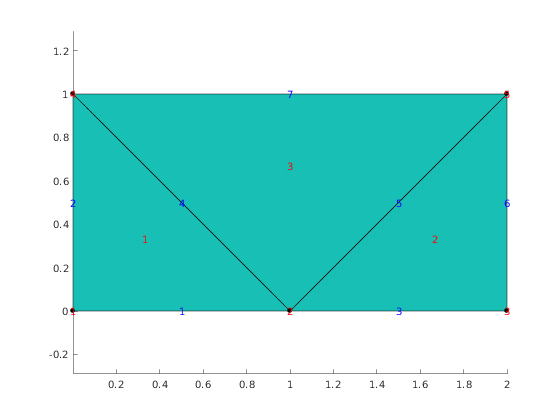

viewer.labelEdges();

f2v = mesh.getAdjacency(2,0);
e2v = mesh.getAdjacency(1,0);
f2e = mesh.getAdjacency(2,1);

Faces to vertices relation

for i=1:f2v.length;
  fprintf('Element %d nodes : ', i);
  nodes = f2v.at(i);
  fprintf(' %d', nodes);
  fprintf('\n');
end

Element 1 nodes :  1 2 4
Element 2 nodes :  2 3 5
Element 3 nodes :  2 5 4

Edges to vertices relation

for i=1:e2v.length;
  fprintf('Edge %d nodes : ', i);
  nodes = e2v.at(i);
  fprintf(' %d', nodes);
  fprintf('\n');
end

Edge 1 nodes :  1 2
Edge 2 nodes :  1 4
Edge 3 nodes :  2 3
Edge 4 nodes :  2 4
Edge 5 nodes :  2 5
Edge 6 nodes :  3 5
Edge 7 nodes :  4 5

Faces to edges relation

for i=1:f2e.length;
  fprintf('Element %d edges : ', i);
  edges = f2e.at(i);
  fprintf(' %d', edges);
  fprintf('\n');
end

Element 1 edges :  1 4 2
Element 2 edges :  3 6 5
Element 3 edges :  5 7 4

Tags of edges in faces

[edgeTags, ~, ~] = mp_face_edge_data(mesh);
disp(edgeTags.Data)

   1   0   1   0
   1   1   0   0
   0   1   0   0

Report demo status

mp_manage_demos('report', 'edges_in_triangles', true);
