Mesh density control demo

Illustrate controling mesh density via global field
Create Mesher object
Set meshing parameters
Create object describing geometric model
Set factors for vertex lc parameter.
Generate mesh
Visualize mesh
Use constant mesh density field
Use variable mesh density field

Illustrate controling mesh density via global field

RectangleGeom describes simple rectangle geometry. It will be meshed specifying the mesh density in three ways: * using nodal lc parameters * using global constant mesh size field * using variable mesh size field

clear variables;

Create Mesher object

When Mesher object is created it takes care of initializing interface to GMSH mesh generator

mesher = mp.Mesher();

Set meshing parameters

mesher.dim = 2;
mesher.clean = true;

Create object describing geometric model

geom = mp.geoms.RectangleGeom('my_domain');
geom.params.da = 4;
geom.params.db = 2;

Set factors for vertex lc parameter.

These factors allow mesh refinement around selected vertices

geom.params.lcFactors = [1, 0.2, 1, 1];

Generate mesh

meshA = mesher.generate(geom, struct('lc', 0.8));

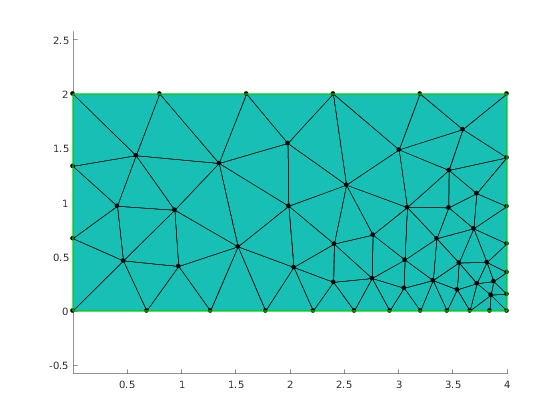

Visualize mesh

The simplest way to visualize mesh is to use Viewer class.

viewer = mp.Viewer();

viewer.show(meshA);

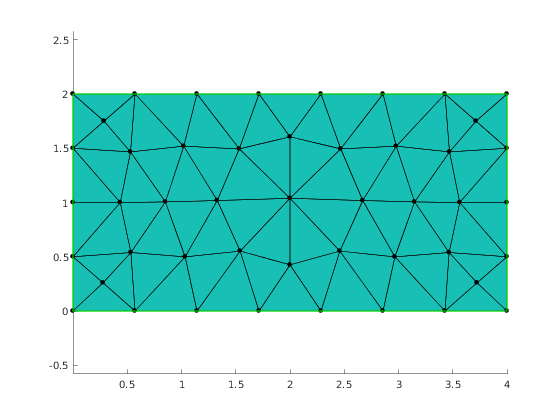

Use constant mesh density field

Generate and visualize mesh again. This time we use global mesh density field

mesher.useGlobalField = true;
meshingParams.lc = 0.2;
meshingParams.globalField = 0.6;

meshB = mesher.generate(geom, meshingParams);

viewer.stackFigure();
viewer.show(meshB);

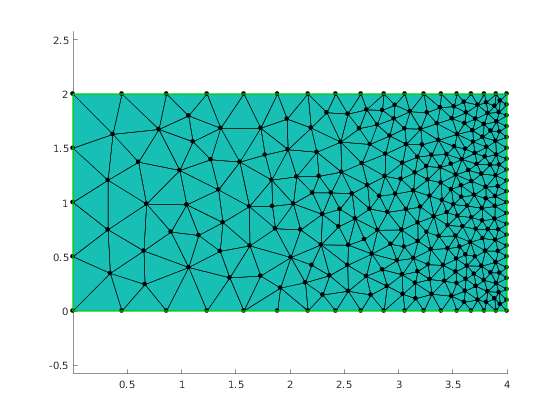

Use variable mesh density field

meshingParams.globalField = '0.5 - x/4*0.4';

meshC = mesher.generate(geom, meshingParams);

viewer.stackFigure();
viewer.show(meshC);

Internal management of demos

mp_manage_demos('report', 'Mesher_globalField', true);
