Making submeshes from regions

Geometric model with interface
Create Mesher object
Create object describing geometric model
Generate mesh
Visualize mesh
Create submes
Internal management of demo

Geometric model with interface

LShapeIfaceGeom class provides geometric model with internal boundary (called interface). The user can set the plcement of the interface with some restricted way by varying parameters fA and fB in the range (0, 1).

clear variables;

Create Mesher object

When Mesher object is created it takes care of initializing interface to GMSH mesh generator

mesher = mp.Mesher();

Create object describing geometric model

geom = mp.geoms.LShapeIfaceGeom('my_domain');
geom.params.dW = 3;
geom.params.dt = 1.2;

% Relative placement of interface endpoints.
geom.params.fA = 0.5;
geom.params.fB = 0.2;

% The mesh in the upper subdomain will consist of quad elements.
geom.params.quads = [0, 1];

Generate mesh

mesh = mesher.generate(geom, struct('lc', 0.8));

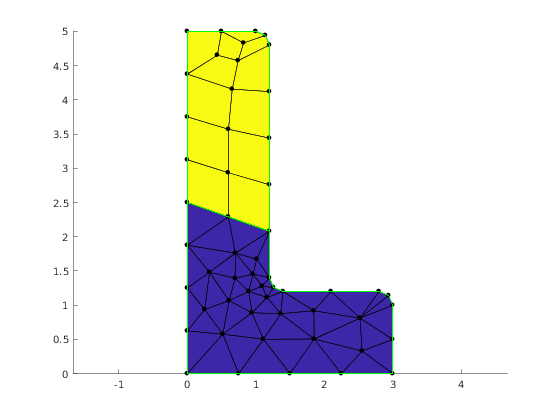

Visualize mesh

The simplest way to visualize mesh is to use Viewer class.

viewer = mp.Viewer();

viewer.show(mesh);

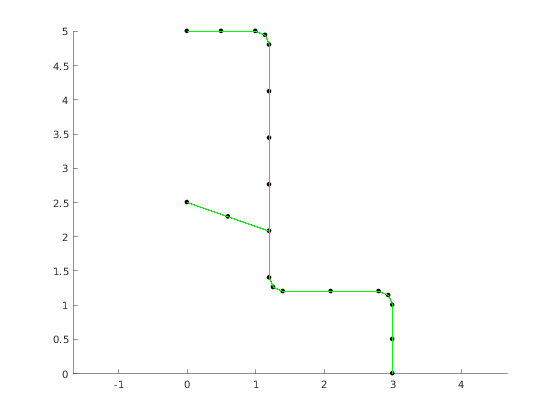

Create submes

The submesh is created by specifying region names of the source mesh

regionNames = {'b_other', 'i_interface'};

subMesh = mesh.submeshFromRegions(regionNames);

viewer.stackFigure();

viewer.showCellEdges = true;
viewer.show(subMesh);
