Making submeshes from regions

Contents

Geometric model with interface

LShapeIfaceGeom class provides geometric model with internal boundary (called interface). The user can set the plcement of the interface with some restricted way by varying parameters fA and fB in the range (0, 1).

clear variables;

Create Mesher object

When Mesher object is created it takes care of initializing interface to GMSH mesh generator

mesher = mp.Mesher();

Create object describing geometric model

geom = mp.geoms.LShapeIfaceGeom('my_domain');
geom.params.dW = 3;
geom.params.dt = 1.2;

% Relative placement of interface endpoints.
geom.params.fA = 0.5;
geom.params.fB = 0.2;

% The mesh in the upper subdomain will consist of quad elements.
geom.params.quads = [0, 1];

Generate mesh

mesh = mesher.generate(geom, struct('lc', 0.8));

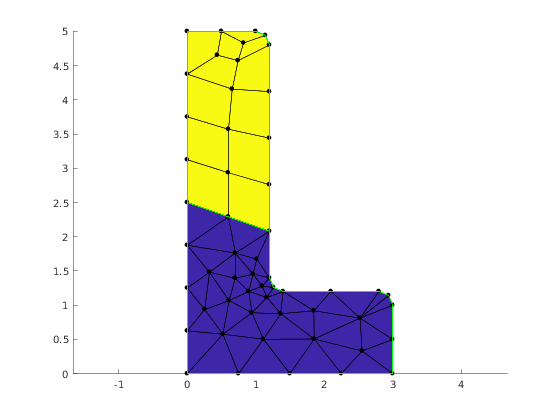

Visualize mesh

The simplest way to visualize mesh is to use Viewer class.

viewer = mp.Viewer();

viewer.show(mesh);

Create submes of interface

The submesh is created by specifying region names of the source mesh

regionNames = {'i_interface'};

subMesh = mesh.submeshFromRegions(regionNames);
dx = geom.params.dt * 1.5;
dy = 0.5*dx;
mp.translateMesh(subMesh, [dx, dy]);

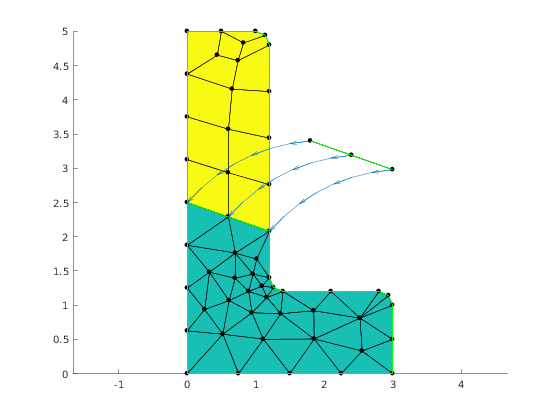

Illustrate link between nodes of the submesh and its parent mesh.

hold on
for i=1:3
  pb = subMesh.nodes(i,:);
  pe = mesh.nodes(subMesh.parentNodesMap(i),:);
  mp_plot_spline_arc(gca, pb, pe, -0.2, 8, 4);
end

viewer.showCellEdges = true;
viewer.show(subMesh);

Create submes of a subdomain

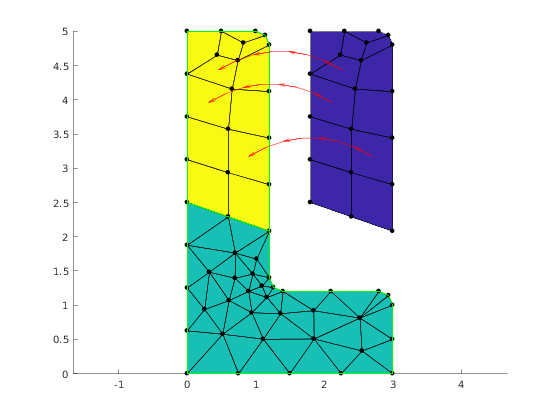

Illustrate link between elements of the submesh and it sparent mesh

viewer.stackFigure();

regionNames = {'d_subTop'};
subMesh = mesh.submeshFromRegions(regionNames);
mp.translateMesh(subMesh, [dx, 0]);

viewer.show(mesh);
viewer.show(subMesh);

hold on
for i=[1, 5, 7]
  pb = subMesh.elemsCenters(i);
  pe = mesh.elemsCenters(subMesh.parentElemsMap(i));
  handles = mp_plot_spline_arc(gca, pb.Data, pe.Data, -0.3, 8, 4);
  set(handles.lines, 'Color', 'red');
  set(handles.arrows, 'Color', 'red');
end

Internal management of demo

mp_manage_demos('report', 'Mesh_parent_child_submesh', true);
